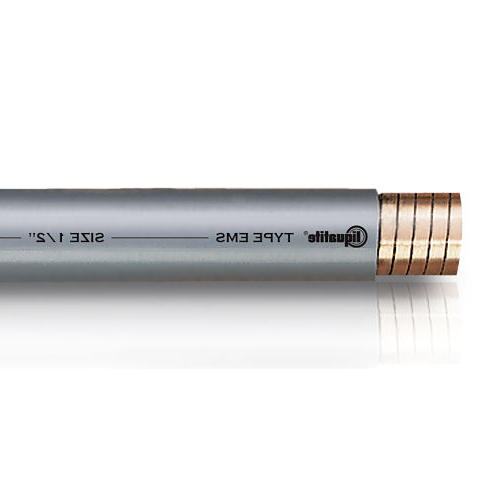

1 1/2 Inch Flexible Electrical Conduit - Interlocked Bronze Shield, Liquidtight PVC Jacket for EMT & EMS Protection | Ideal for Industrial Wiring, Outdoor Installations & Hazardous Locations

[short]

• US Trade Size: 1 1/2"
• ISO: 50 mm
• CSA: 41 mm
• Type: EMS-15
• Internal Diameter: Min: 1.575 Inches & Max: 1.600 Inches
• Outer Diameter: Min: 1.865 Inches & Max: 1.900 Inches
• Inside Bend Radius: Static: 7.0 Inches

• Weight: 147 Lbs
• Reel 50ft: Part Black: 78852
• Reel 150ft: Part Black: 78854


1 1/2" Trade Electri Flexible Conduits Shield Interlocked Bronze Type EMS Liquidtight Jacket PVC

Allowable Ampacity for 1 1/2" Trade Electri Flexible Conduits Shield Interlocked Bronze Type EMS Liquidtight Jacket PVC: 100 Amps

Application:

• Accepts Standard Metallic Liquidtight Fittings
• Designed for wiring applications requiring shielding effectiveness from Electromagnetic and Radio Frequency Interference (EMI/RFI)

Shield-Flex, EMS and HFEMS are trademarks of Electri-Flex Company, registered in the U.S. Patent and Trademark Office.

Also Know As:

Electri Flexible Conduits, Liquidtight Jacket, Type EMS , Zero Halogen, Low Smoke, Flexible Conduits, Flexible PVC

Markets:

Aerospace, Cell Towers, Defense, Healthcare, Renewable Energy, Ship Building, Telecommunications

Type EMS:

Type EMS has an inner core that is made from a fully interlocked bronze strip and does not contain a braided shield.

For a low-smoke, low flame spread, zero-halogen version, ask for .

Construction:

Inner Core:

• Bronze
• 3/8” – 4” Fully Interlocked Profile

Liquidtight Jacket:

• Flexible PVC
• Resistant to
• Flame Retardant
• Sunlight Resistant (UV)
