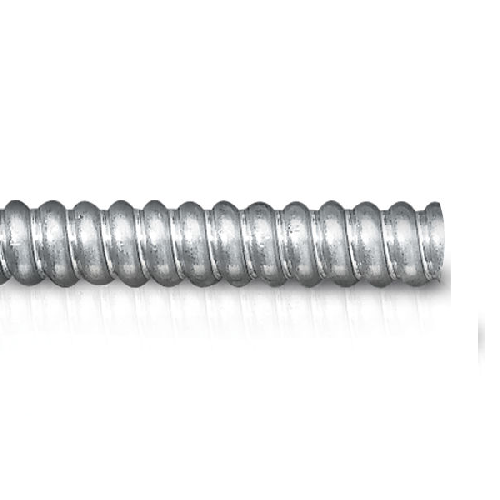

1-1/2 Inch Heavy Duty Flexible Aluminum Alloy Conduit - Type ABRH Non-Jacketed Electrical Metal Conduit for Commercial & Industrial Wiring Applications

[short]

Us Trade Size: 1 1/2"
ISO: 50 mm
CSA: 41 mm
Type: ABRH-15
Internal Diameter: Min: 1.500 Inches & Max: 1.575 Inches
Outer Diameter: Min: 1.850 Inches & Max: 1.950 Inches
Inside Bend Radius: Static: 7.5 Inches
Weight: 57.75 Lbs. per 100 Ft
Coil 25ft: Part: 69752
Reel 100ft: Part: 69753

1 1/2" Trade Electri Reduced Wall Flexible Conduits Aluminum Alloy Type ABR Non-Jacketed

Allowable Ampacity for 1 1/2" Trade Electri Reduced Wall Flexible Conduits Galvanized Steel Type BR Non-Jacketed: 100 Amps

Application:

• In addition to meeting the UL and NEC requirements noted for Type ABR, Reduced Wall Aluminum Conduit, ABRH is also:
• Intended as a metal raceway for wires and cable in accordance with Canadian Electrical Code (CEC) C22.1 Section 12-1000.
• Suitable for use with listed connectors intended for FMC (Flexible Metal Conduit)

Markets:

Construction, Security, Utilities, Wastewater Treatment

Also Known As:

1 1/2" Trade, Electri Heavy Wall, Flexible Conduits, Aluminum Alloy, Type ABRH, Non-Jacketed, High Strength Aluminum, Heavy Gauge, formed strip, Helically wound

Construction:
