60538471
| Part Number: | 943205 |
| A : | 3.5 |
| B : | 2.32 |
| C : | 4.72 |
| D : | 0.72 |
| CH : | 1.85 |
| DN : | 1.24 |
| Weight : | 1.640 |
| Shape : | Valve |
| Box Case : | 4/16 |
| Size Npt : | 1-1/4" |

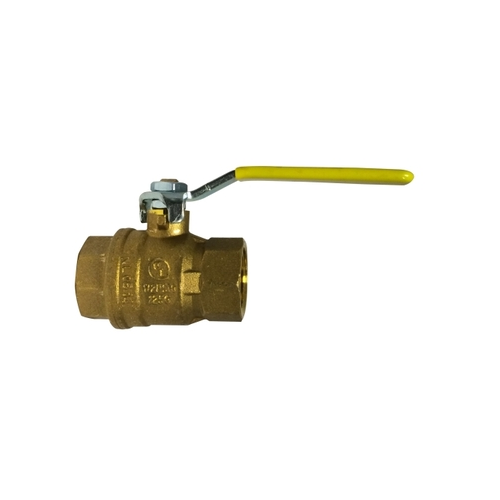

1 1/4" Csa Full Port Ball Valve 943205
Description:
1 1/4 CSA FULL PORT BALL VALVE
Solid Chrome Plated Brass Ball :
• Suitable for full range of liquids and gases
• Minimal pressure drop due to large full size ports
• Bottom loaded, pressure retaining stem
• Pressure rated at 600psi (42 bars) WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Virgin TFE stem packing seal, thrust washer and seats.
• Yellow vinyl insulator on heavy duty plated carbon steel handles.
• Fast 1/4 turn open or close operation
• Low operating torque
• Flow can go both directions
• Generic Handles
Washer and Seats:
-•Maximum operating temerature' 248°F (120°C)
• Minimum operating temperature: -20°F (-40°C)
• Each valve individually tested
• Forged Brass - for more strength
• Threaded ends to ANSI B1.20.1
• Hard chromium plated solid ball
• Bottom entry, blow-out proof stem
• Deeper threads - for better connections
