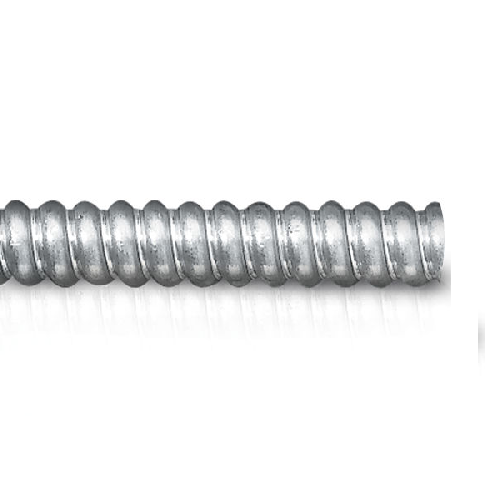

1 1/4 Inch Heavy Duty Flexible Aluminum Alloy Conduit - Trade Grade Electrical Conduit for Industrial Wiring, Outdoor Use & Hazardous Locations

[short]

Us Trade Size: 1 1/4"
ISO: 40 mm
CSA: 35 mm
Type: ABRH-14
Internal Diameter: Min: 1.250 Inches & Max: 1.300 Inches
Outer Diameter: Min: 1.550 Inches & Max: 1.630 Inches
Inside Bend Radius: Static: 6.2 Inches
Weight: 45.15 Lbs. per 100 Ft
Coil 50ft: Part: 69701
Reel 400ft: Part: 69744

1 1/4" Trade Electri Reduced Wall Flexible Conduits Aluminum Alloy Type ABR Non-Jacketed

Allowable Ampacity for 1 1/4" Trade Electri Reduced Wall Flexible Conduits Galvanized Steel Type BR Non-Jacketed: 100 Amps

Application:

• In addition to meeting the UL and NEC requirements noted for Type ABR, Reduced Wall Aluminum Conduit, ABRH is also:
• Intended as a metal raceway for wires and cable in accordance with Canadian Electrical Code (CEC) C22.1 Section 12-1000.
• Suitable for use with listed connectors intended for FMC (Flexible Metal Conduit)

Markets:

Construction, Security, Utilities, Wastewater Treatment

Also Known As:

1 1/4" Trade, Electri Heavy Wall, Flexible Conduits, Aluminum Alloy, Type ABRH, Non-Jacketed, High Strength Aluminum, Heavy Gauge, formed strip, Helically wound

Construction:

• High Strength Aluminum Alloy
• Helically wound, formed strip
• Heavy Gauge
