1 AWG 3C Stranded BC Shield Steel Tape TPO Halogen-Free RG7H1(O)NM1 12/20KV Medium Voltage Cable

Allowable Ampacity for 1 AWG 3C Stranded BC Shield Steel Tape TPO Halogen-Free RG7H1(O)NM1 12/20KV Medium Voltage Cable: 100 Amps

About:

The RG7H1(O)NM1 stranded BC (bare copper) shield steel tape TPO (thermoplastic polyolefin) halogen-free medium voltage cable is designed for power distribution and transmission in various industrial, commercial, and utility applications where medium voltage power is required.

Also Known As:

• RG7H1(O)NM1 cable
• Medium voltage cable
• TPO insulated cable
• Halogen-free cable
• Steel tape shield cable

Application:

• Industrial: Used in factories, plants, and other industrial settings where medium voltage power is needed for machinery and equipment.
• Commercial: Ideal for large buildings, infrastructure, and facilities requiring reliable medium voltage distribution.
• Utility: Can be used in substations, power distribution networks, and for other utility applications where medium voltage cable is required.

Standards:

• IEC (International Electrotechnical Commission) standards
• IEEE (Institute of Electrical and Electronics Engineers) standards
• ANSI (American National Standards Institute) standards
• UL (Underwriters Laboratories) standards

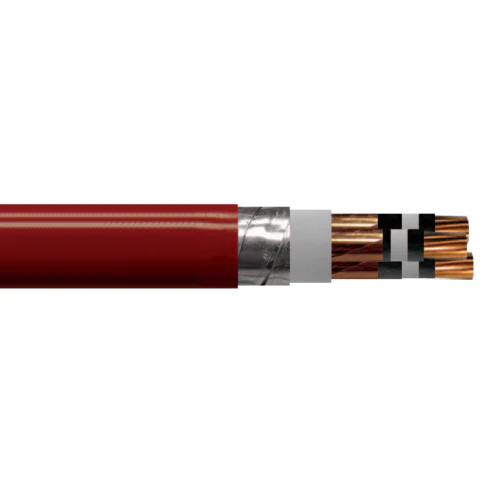

Construction:

• Conductor: stranded red copper conductor Cl.2, acc.to IEC 60228 Inner semi conductive
• layer: extruded semi-conducting compound
• Insulation: rubber type G7 Outer semi-conductive
• layer: extruded semi-conducting compound
• Screen: red copper tape
• Inner sheath: halogen-free type M1, colour natural
• Armour: steel tape
• Outer sheath: red (RAL 3000), thermoplastic polyolefine halogen-free type M1

Features:

• according to IEC 60502-2

Specifications:

• AWG No: 1
• No.of cores x cross section n x mm2: 3x50
• Outer-Ø ca.mm ± 10%: 61
• Nominal voltage: Uo/U 1,8/3 kV, Uo/U 3,6/6 kV,
                                  Uo/U 6/10 kV, Uo/U 8,7/15 kV,
                                  Uo/U 12/20 kV, Uo/U 18/30 kV
                                  Uo/U 26/45 kV
• Test voltage: Uo/U 1,8/3 kV = 6 kV,
                           Uo/U 3,6/6 kV = 11 kV,
                           Uo/U 6/10 kV = 17 kV,
                           Uo/U 8,7/15 kV = 24 kV,
                           Uo/U 12/20 kV = 29 kV,
                           Uo/U 18/30 kV = 45 kV
• Temperature range: - 15 o C up to + 90 o C
• Min. bending radius: 16 x d
• Cable weight approx. kg/km: 6099
• Part Number: 48070UR1030M65
