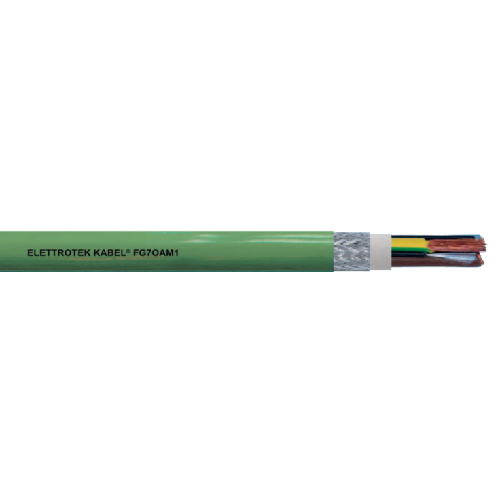

1 AWG 3C 25mm Bare Copper Shield Steel Braid Thermoplastic Halogen-Free FG7(O)AM1 0.6/1KV Armour Cable

Allowable Ampacity for 1 AWG 3C 25mm Bare Copper Shield Steel Braid Thermoplastic Halogen-Free FG7(O)AM1 0.6/1KV Armour Cable: 100 Amps

About:

This cable is designed for medium voltage applications, providing a secure and reliable means of power distribution in environments requiring enhanced protection against mechanical stresses, electrical interference, and fire hazards. The use of bare copper conductors, steel braid armor, and a halogen-free thermoplastic sheath makes it suitable for installations where safety and performance are paramount.

Also Known As:

 FG7(O)AM1 Armoured Cable
 Halogen-Free Armored Power Cable
 Steel Braid Armoured Halogen-Free Cable

Application:

 Industrial installations, particularly where fire safety is a concern and in areas with a high risk of mechanical damage.
 Power supply in both outdoor and indoor environments, including those exposed to moisture, due to its enhanced protective features.
 Infrastructure projects like subways, tunnels, and buildings requiring cables with low smoke and non-toxic gas emissions in case of fire.

Standards:

 Typically meets international standards for fire resistance, low smoke emission, and halogen-free materials. These may include, but are not limited to, IEC 60502-1 for power cables with extruded insulation for rated voltages from 1kV to 30kV.
 Standards for flame retardant and halogen-free properties might include IEC 60754 (for gas acidity) and IEC 61034 (for smoke density).

Construction:

• Conductor: Flexible red copper conductor Cl.5, acc.to IEC 60228
 Insulation: Rubber type G7

• Colour cores: acc. to DIN VDE 0293-308, HD 308 S2 from 6 cores black cores with consecutive numbers acc. to EN 50334; green-yellow earth-wire from 3 cores
• Inner sheath: Thermoplastic halogen-free compound
• Armour: Braid of galvanized steel wires

• Outer sheath: Green (RAL 6018), thermoplastic halogen-free type M1

Features:

 According to IEC 60502-1

Specifications:

• No. of cores x cross section n x mm²: 3x50+25
• AWG no.: 1
• Outer-Ø ca.mm ± 10%: 33,6

• Copper Weight kg/km: 1680

• Nominal Voltage: Uo/U 0,6/1 kV
• Test voltage: 4 kV
• Temperature range: - 15°C up to + 90°C
• Max short circuit temperature: + 250° C

• Min. bending radius: 14 x d
• Max. Tensile Stress: 50 N/mm²

• Cable Weight approx. kg/km: 2700
• Part Number: 46170GE2035M65
