40516693
[pdf]
| Product Type | Steam Trap |
| Size | 1 1/2" |
| Connection | NPT |
| Body Material | Ductile Iron |
| Operating Pressure | 300 PSIG |
| Allowable Pressure | 350PSIG 450ºF |
| Allowable Temperature | 450ºF 300PSIG |
| Part No | FTT-065-16-N |
Description

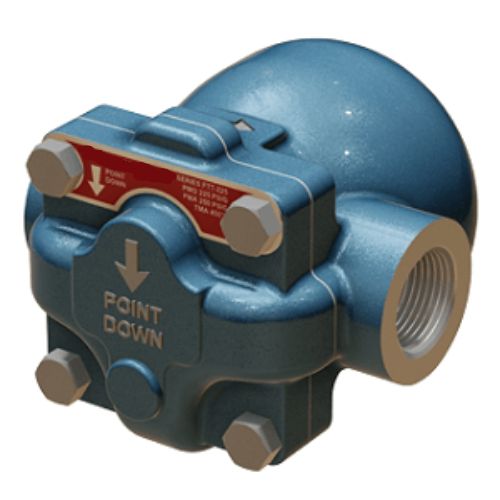

The FTT Series steam traps are designed with in-line pipe connections to efficiently remove condensate and air from HVAC and industrial process systems. Ideal for applications such as unit heaters, water heaters, pressing machines, heat exchangers, and coils, these traps offer reliable performance in demanding environments. Each unit features a robust welded stainless steel thermostatic air vent, along with a stainless steel seat and mechanism for enhanced durability and longevity. Known for their superior air-handling capabilities, FTT traps are often preferred over inverted bucket traps in many process applications. They are also suitable for drip applications, including the drainage of steam mains and supply lines, making them a versatile solution for steam system maintenance.
Features
• All stainless steel internals with hardened seat and wear parts.
• In-line repairability is simplified by having all internals attached to the cover.
• F&T traps discharge condensate immediately as it is formed no condensate will back up into the system.
• Ductile Iron has a higher pressure and temperature rating and is more resistant to shock loads than cast Iron.
• Welded stainless steel thermostatic air vent resists shock from water hammer. Live orifice air vent is available for super heated applications.
• Excellent air handling capability allows air to be discharged rapidly so steam can enter the system quickly during start-up.
